EB 2.0 20AH BATTERY

The battery pack capacity of the new M-53 has increased to an astonishing 20AH (960WH) and the sustainable driving range on a single charge has reached 125+ Miles (PAS1)learn more>>>

EB2.0 ELECTRONIC SYSTEM

This E-43 series will be used the new EB 2.0 system for riding. The newly added button allows the Addriders to use a variety of light combinations such as turning left and right signals, braking signals, light flashing and other functions to make riding safer and more convenient. learn more>>>

ADDMOTOR EB2.0 MECHANICAL DESIGN

As the tenth-anniversary edition, Addmotor has designed the EB 2.0 components such as the polygon frame design, hydraulic brake, 26*2.3" tires, and adjustable seat with a back handle to be an ideal vehicle for transportation in the city at an affordable cost. learn more>>>

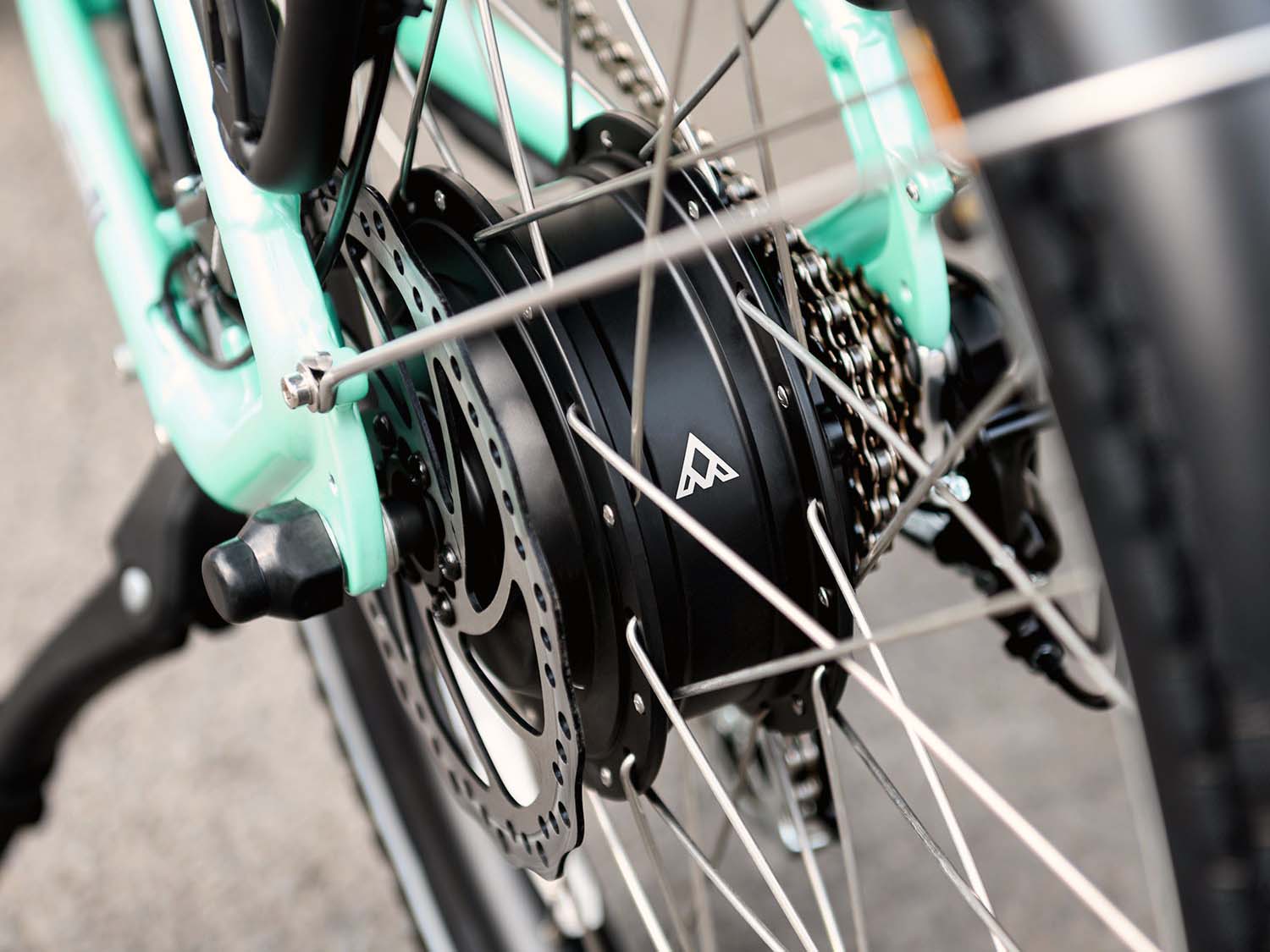

48V*500W Rear Brushless Gear Motor

The ability to ramp up to over 907 peak watts provides power for hill climbs and faster acceleration. The newer dedicated inner ring is more heat resistant, quieter, and has better heat dissipation performance.

20Ah EB 2.0 Samsung Battery

The bike is powered by a 48-volt system and a 20Ah (960WH) battery, with a range of up to 125 miles (PAS1). It can reach 5000mha by utilizing Samsung's most recent high-capacity 21700 battery cell combination.

EB 2.0 Muti Function LCD Display

The benefits of integrated increased speed to 7 PAS can satisfy your desire for speed. Including the left and right turning signals, and more on the display screen gives an extra guarantee of your safety while riding.

Custom Electric Horn

Drawing on the design of car horns, we designed a customized electric horn, which can overcome the small decibel characteristics of traditional horns which can be transmitted about 500 Feet away.

Newly Customized Snap- Lock Design

It can ensure the battery is stably fixed on the bike body and the key can be pulled out when the lock is locked to avoid frequent contact with the rider’s legs when riding.

Patented New Add Button

The buttons' uneven design allows you to distinguish each one with a single touch. You can easily change the front and rear lights without having to look at your screen.

Adjustable U Style Curved Handlebar

An adjustable stem allows you to adjust to the right angle for a comfortable upright position, adjustable handlebar angle and height.

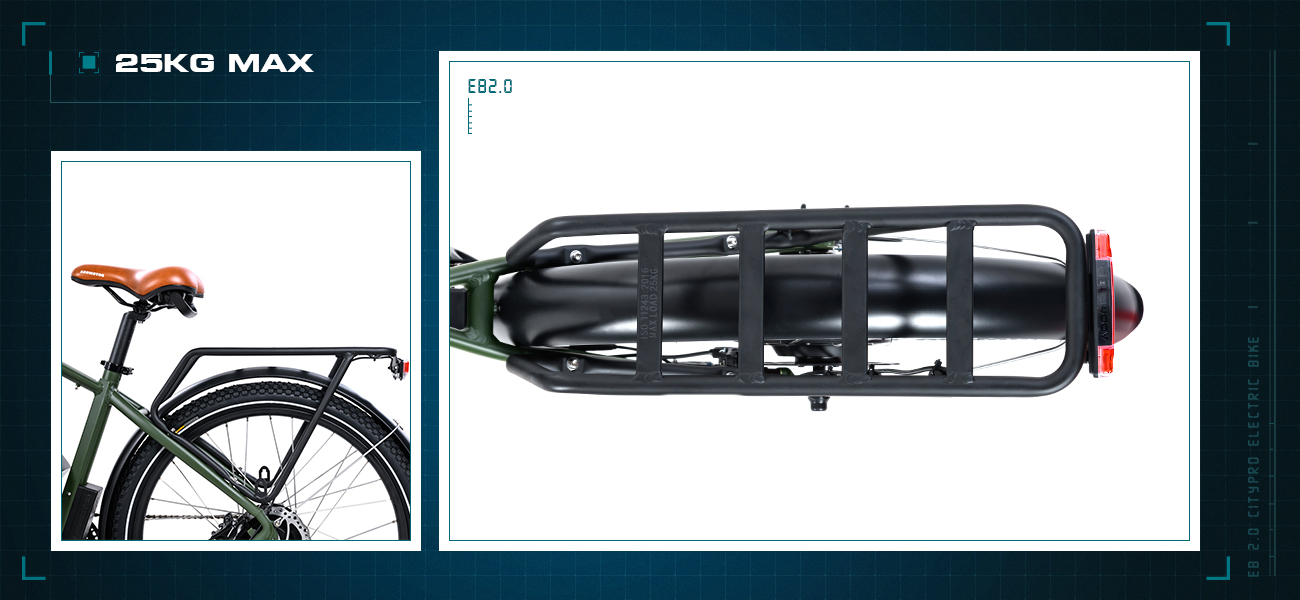

55lbs Multi-Purpose Rear Rack

The EB2.0's rear rack can support a maximum load of 55 lbs (25KG). This weight capacity allows you to go grocery shopping as well as transport your travel belongings.

EB 2.0 Hydraulic Disc Brake

The friction generated by the transmission of oily objects in the oil pipe will effectively reduce the loss of kinetic energy and increase the braking force.

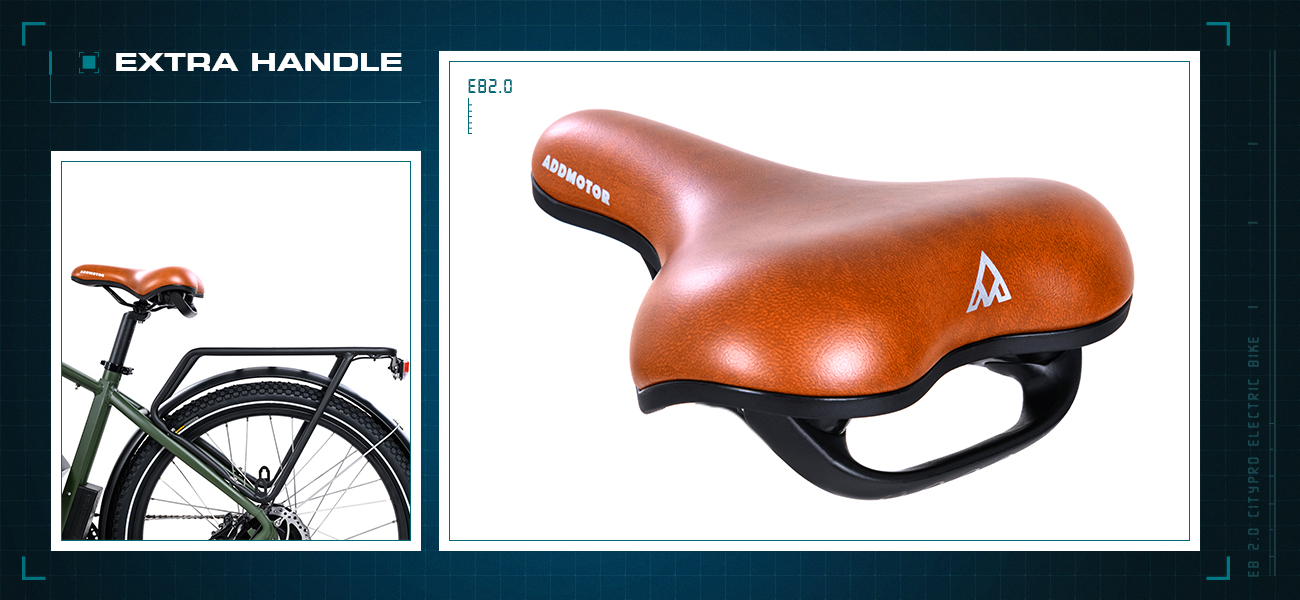

Adjustable Saddle With Back Handle

We've improved the saddle so that you can adjust it for comfort while riding your e-bike. In addition, a small handle is added to the saddle to make lifting and moving it easier.

Strong Polygon Frame Design

The 6061 aluminum alloy heterogeneous tube frame and the internal wiring design of the city electric bike make the electric bike sleeker.

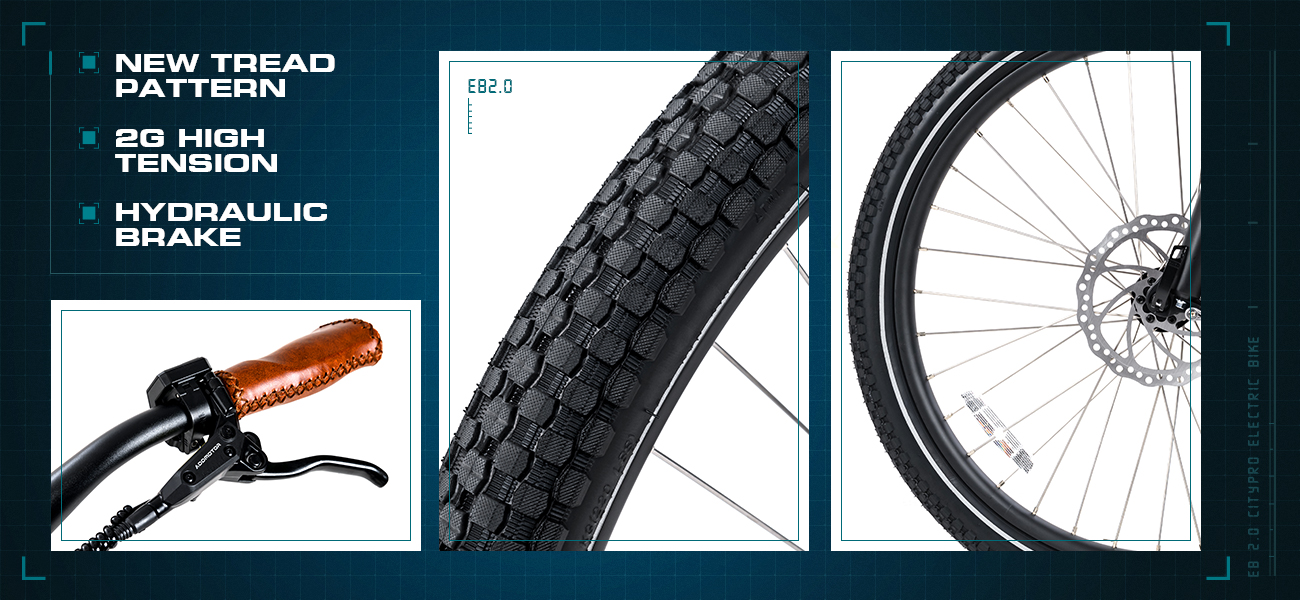

26*2.3" Reflective Strip Durable Tires

Specially designed 26*2.3" stab-resistant tires can help you avoid a flat tire situation. The low-resistance design makes it easier to ride on a variety of terrains. Tire reflections make nighttime riding safer.

Technical specs

+Electronics

Motor

Addmotor 48V*500W (907Peak Watts) Rear Brushless Gear Motor.

Battery

Samsung 48V*20Ah(960WH) with 3200 Cells Battery, Charging Time 10 Hours, Rated For 1000-1500 Charge Cycles

Display

Addmotor EB 2.0 Multiple Function LCD Display

Controller

Addmotor EB 2.0 20A Controller

Throttle

Variable Speed Control - 1/2 Twist Throttle With Power-Cut Switch

Lights

Front: Electric Headlight TRENDO by Spanninga
Rear: Electric Taillight & Braking Light SOLO by Spanninga

Charger

48V*2.0AH 5 Pins US Standard DC Charger

Charger Port

5 Pins With Auto Magnetic Suction

Pedal Assist

Intelligent 7 Level Pedal Assist, Speed Sensor

Wiring

Water-Resistant Connectors and Wiring Harness

Range

125 Miles Per Charge with PAS 1(Estimate)

+Components

Frame

2022 EB 2.0 Strong Polygon Design

Front Fork

Oil Spring Fork with 100mm of Travel

Brake

EB 2.0 Hydraulic Disc Brake

Brake Disc

180MM

Tires

Kenda GIGAS Puncture-resistant 26" X 2.3" Inches Durable Tires

Grips

Durable Ergonomic Design

Handlebar

Adjustable U Style Curved Handlebar

Seat Post

Aluminum Thicken 31.6mm x 3.0

Saddle

Addmotor Exclusive Well Padded Saddle with Back Handle

Front Wheel

Quick Release

Rims

Aluminum Double Wall

Spokes

12-Gauge High-Strength Spokes

Fenders

Aluminum, Front and Rear Included

Horn

Included Electric Horn

Derailleur

SHIMANO 7-Speed

Shifter

SHIMANO Right Thumb Shifter 7-Speed, SIS Index System

Rear Rack

Included 55lbs (25KG) Durable Rear Rack

Measurement

SIZING AND GEOMETRY

The E-43 fits riders between 5'4''-5'8''and weighs under 250 lbs.
The E-53 fits riders between 5'7''-6'1''and weighs under 250 lbs.

Wheelbase 44"

Total Length70"

Total Width28.3"

Reach7.8"

Seat Tube17.3"

Handlebar Length28.3"

Standover Height26.8"

Seat Post Length33mm

Seat Post Diameter 31.6mm

Rear Rack55 lbs

Minimum Seat Height28.3"

Maximum Seat Height36.6"

Minimum Handlebar Height43.3"

Maximum Handlebar Height47"

Wheelbase 44"

Total Length70"

Total Width28.3"

Reach7.8"

Seat Tube17.3"

Seat Post Length33"

Rear Rack55"

Wheelbase 44"

Total Length70"

Total Width28.3"

Reach7.8"

Seat Tube17.3"

Handlebar Length28.3"

Standover Height21.7"

Seat Post Length33mm

Seat Post Diameter 31.6mm

Rear Rack55 lbs

Minimum Seat Height28.3"

Maximum Seat Height36.6"

Minimum Handlebar Height42.1"

Maximum Handlebar Height46"

Wheelbase 44"

Total Length70"

Total Width28.3"

Reach7.8"

Seat Tube17.3"

Seat Post Length33"

Rear Rack55"

LOW STEP
HIGH STEP

;

Well Fit

WHAT PEOPLE ARE SAYING

Name: 【Please Search The Keywords E-43/E-53 to Purchase】E-43/53 CITYPRO EBIKES
Brand: Addmotor
SKU: EB3362
Price: 1599.00 USD
Availability: OutOfStock

CRUISING AROUND THE CITY

Absolutely love cruising around on the CITYPRO. With the PAS 1 Pedal, you can exercise more while taking in the scenery, carry all of my belongings for a day, and try taking the less traveled roads. It can take you up to 125+ miles!

BEST VALUE CITY PRO EBIKE

The City Pro E-series eBikes are an excellent way to avoid traffic jams in a crowded city and save a lot of commute time. You can find everything you would need for riding in the city with the EB 2.0 battery, electronic system and special design frame.

KICKSTART OF EBIKE 2022 BOOM

Whether the 20Ah larger capacity can take you on a weekend getaway or the electronic system can work more efficiently than an ebike. The EB 2.0 E-43/53 would then kickstart the ebike boom in 2022.

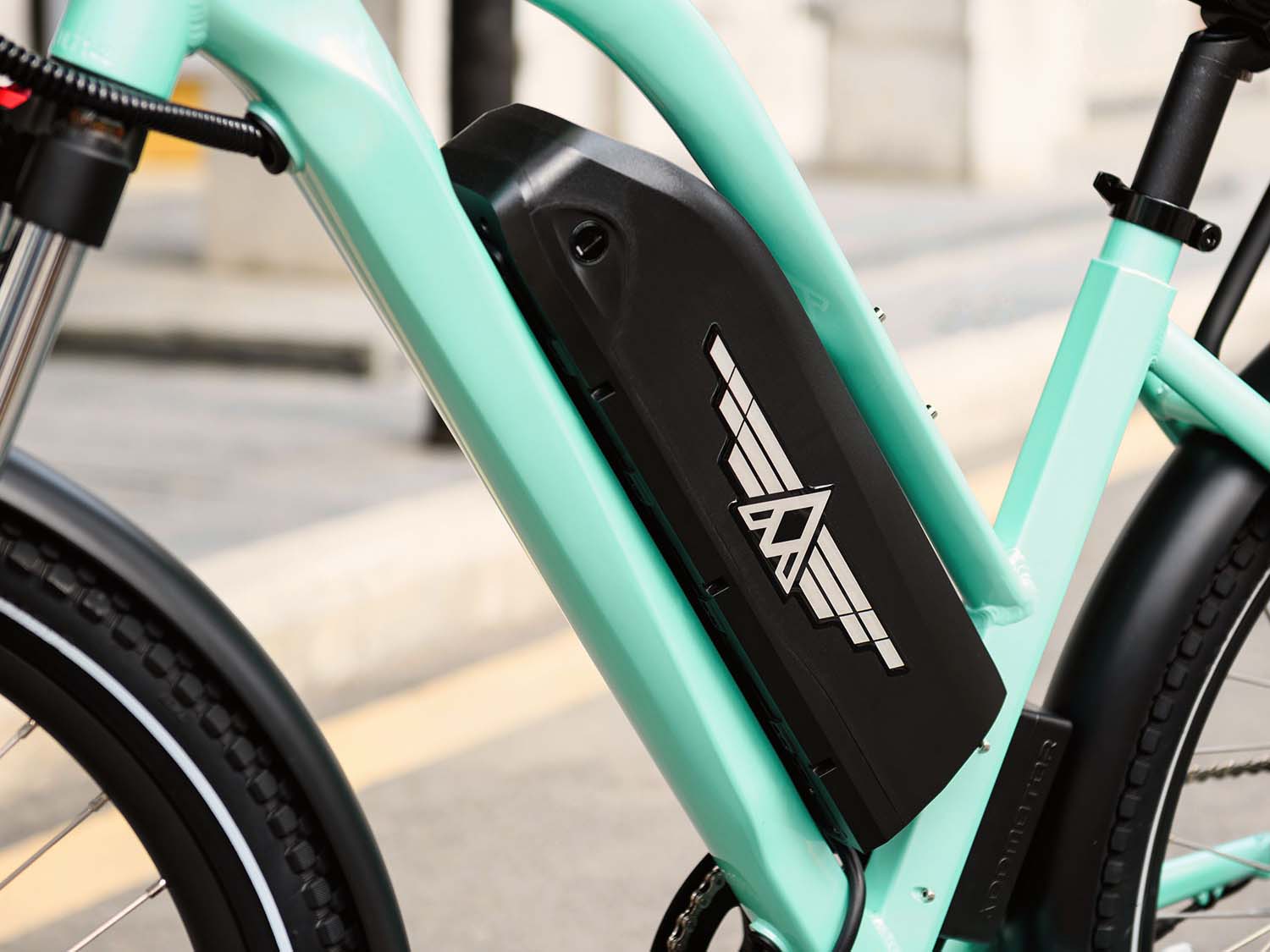

The battery case has a much thicker case of 3.0MM with the thickest part being 3.5MM (30% thicker than the previous model). It is made of materials that comply with UL certification and can protect the battery.
The newly developed and customized snap lock ensures that the battery is stably fixed on the bike body and the key can be pulled out when the lock is locked to avoid frequent contact with the rider’s legs when riding.
There is an external replaceable fuse holder at the bottom of the battery case, allowing you to replace the fuse if needed (In previous versions, you may have had to disassemble the entire battery case to replace the fuse).
With a reinforced and thickened battery case mounting rail seat made of high-strength materials, there are up to 8 extended card and lock card slots. The guide rails are designed with dual parallel mounting holes to ensure balance and stability when installed on the bike frame. This can help avoid left and right swaying that may be caused by the single row on the previous version.
