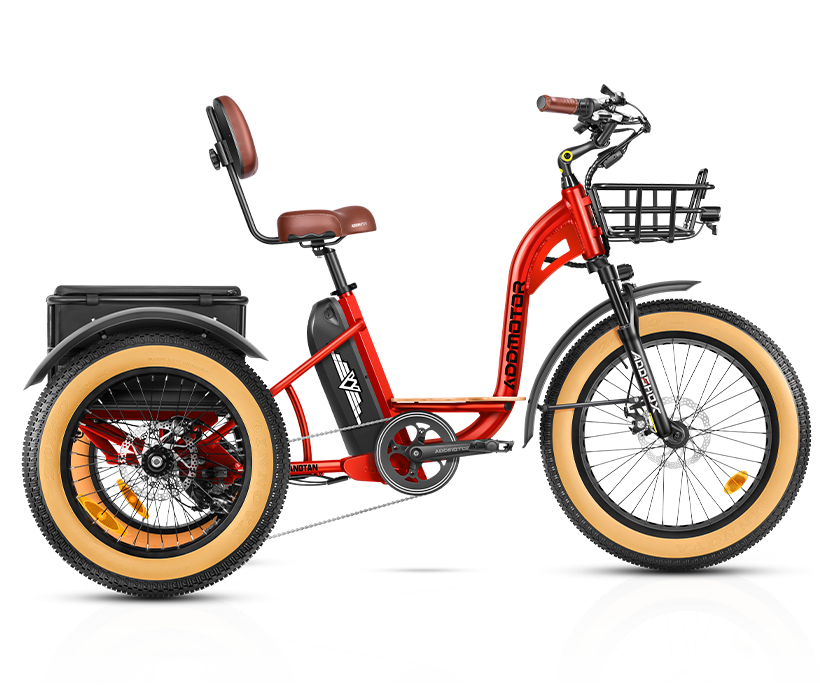

Grandtan paints your life with colors and offers more possibilities for exploration and discovery.
| GRANDTAN M-340 2023 | GRANDTAN M-340 2024 | |
|---|---|---|
| Motor | 750W Front-Mounted Motor | 750W Rear-Mounted Motor |
| Battery | 960Wh UL-Certified Battery w/ Samsung Cells | 960Wh UL-Certified Battery w/ Samsung Cells |
| Sensor | Cadence Sensor | Torque Sensor |
| Max Motor Torque | 80 Nm | 90 Nm |
| Parking Brake | ||
| Trailer Tube | ||
| Differential | ||
| Horn | Horn+Bell | Horn+Bell |
| 5 in 1 Taillight | ||
| Price | $2,999 | $3,099 |
Suits riders in the height range of 5'2"-6 '4", max load capacity up to 450 lbs.
Suits riders in the height range of 5'5"- 6'5", max load capacity up to 450 lbs.
The rear-mounted motor makes the Grandtan much more stable and helps maintain a better balanced ride when climbing hills
Max Motor Torque: 90 Nm
Peak Motor Watts: 1,000W
The differential allows the rear wheels to adjust to different speeds and terrains, helping you reduce slippage and hopping on turns. Grandtan better ensures you smooth and safe trike riding.
World’s first 48V*20Ah UL Recognized battery built w/ Samsung latest 50E 21700 cells. It offers a stable 30A output current capability and IPX6 water resistance to withstand heavy rain and showers for your safety.
Charging Time: 9-10 hrs
In Accordance with UL-2271
The new parking brake system can lock the wheels in place when activated. So you can stop or park anywhere with confidence.
| PAS LEVEL | SPEED | RANGE |
|---|---|---|
| PAS 1 | 8 mph | 85 miles |
| PAS 2 | 10 mph | 75 miles |
| PAS 3 | 12 mph | 65 miles |
| PAS 4 | 14 mph | 55 miles |
| PAS 5 | 16 mph | 50 miles |
| PAS 6 | 18 mph | 45 miles |
| PAS 7 | 20 mph | 40 miles |
*Please note that these numbers are based on several different factors. The factors involved are: riding at a constant speed with no wind on smooth cement or asphalt roads and the rider's weight being approximately 165LBS.
Provides key ride info with battery usage, mileage, speed, lights, PAS level, current motor wattage, and turning to improve your safety and control on the road.
2024 Grandtan has an enhanced tube for effortless attachment of a trailer, significantly increasing the trike's cargo capacity. Just connect the trailer to the tube, and you're ready to carry larger loads with ease.
Grandtan trike has a 5-in-1 tail light, giving signals for driving mode, danger, flashing, braking, and turning directions. The braking signal lights up automatically when you use the brakes.
With the mid-axis torque sensor, the Grandtan can better match your pedaling effort, boosting your efficiency and comfort for a more natural and responsive ride.
Full-wheel Tektro mechanical disc brake
system with an automatic motor cutoff
sensor allows you to slow or stop quickly.
180mm F / 2*180mm Rear Brake Rotors
Ease and relax your feet on the board while riding with throttle mode or stopping for a traffic light.
Swan style design makes the Grandtan more stylish, good-looking, and easier to get off and on.
The padded saddle stablizes your ride,and the backrest height can be customized to maximize your comfort.
Helps ensure a smoother and more effective shock absorption when rolling over the tough terrains.
An rotatable stem allows you to adjust to the right angle for a comfortable upright position.
Improves the trike's balance and stability, making the ride safer and more enjoyable.
Addmotor one of a kind fenders can protect your body and e-trike from mud, sand and more.
The dual brakes system ensures safe braking at high speeds, meanwhile triggering the automatic motor cutoff and rear brake light.
Grandtan comes with a waterproof bag freebie to store your item and safeguard your nocturnal ride.
Grandtan Trike for riders: 5'2"-6 '4"
Max load capacity is 450 lbs.
1Total Length 77"
2Total Width 33.5"
3Wheelbase 49"
4Maximum handlebar Height 48"
5Minimum handlebar Height 43"
6Standover Height 17.5"
7Seat Tube 19"
8Minimum Seat Height 32.5"
9Maximum Seat Height 39"
10Reach 13"
11Rear Basket 48L, 20.5" x 16" x 9.5"
12Battery 9.5LBS/4.3KG
13Bike Weight 118LBS/53.5KG
